6" MAX3.3 Suspension System - FORD F-150 2015-2020 (SKU: 42-21640)

OVERVIEW

ReadyLift® by Phantom Trucks™ all-new 6” MAX3.3 Suspension Systems for the 2015-2020 Ford F-150s. The MAX3.3 Suspension Systems deliver first-class ride and handling with plenty of tire clearance and a great-looking lifted stance in our all-new family of high-performance big lift suspension systems for Ford F-150 4WD models.

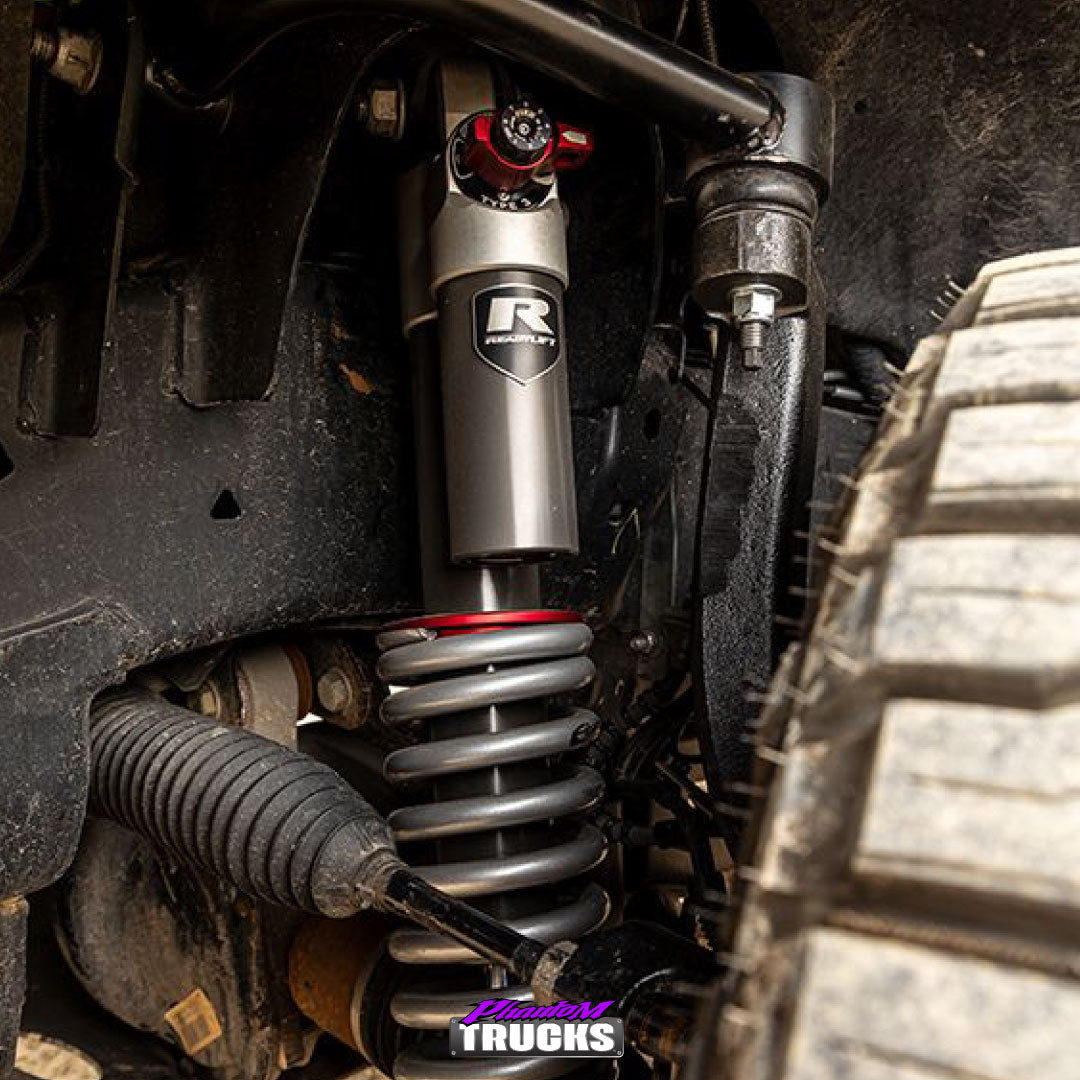

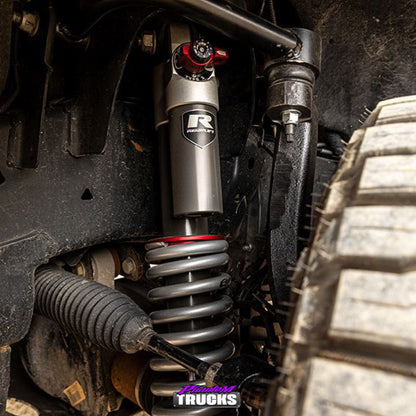

• 3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference.

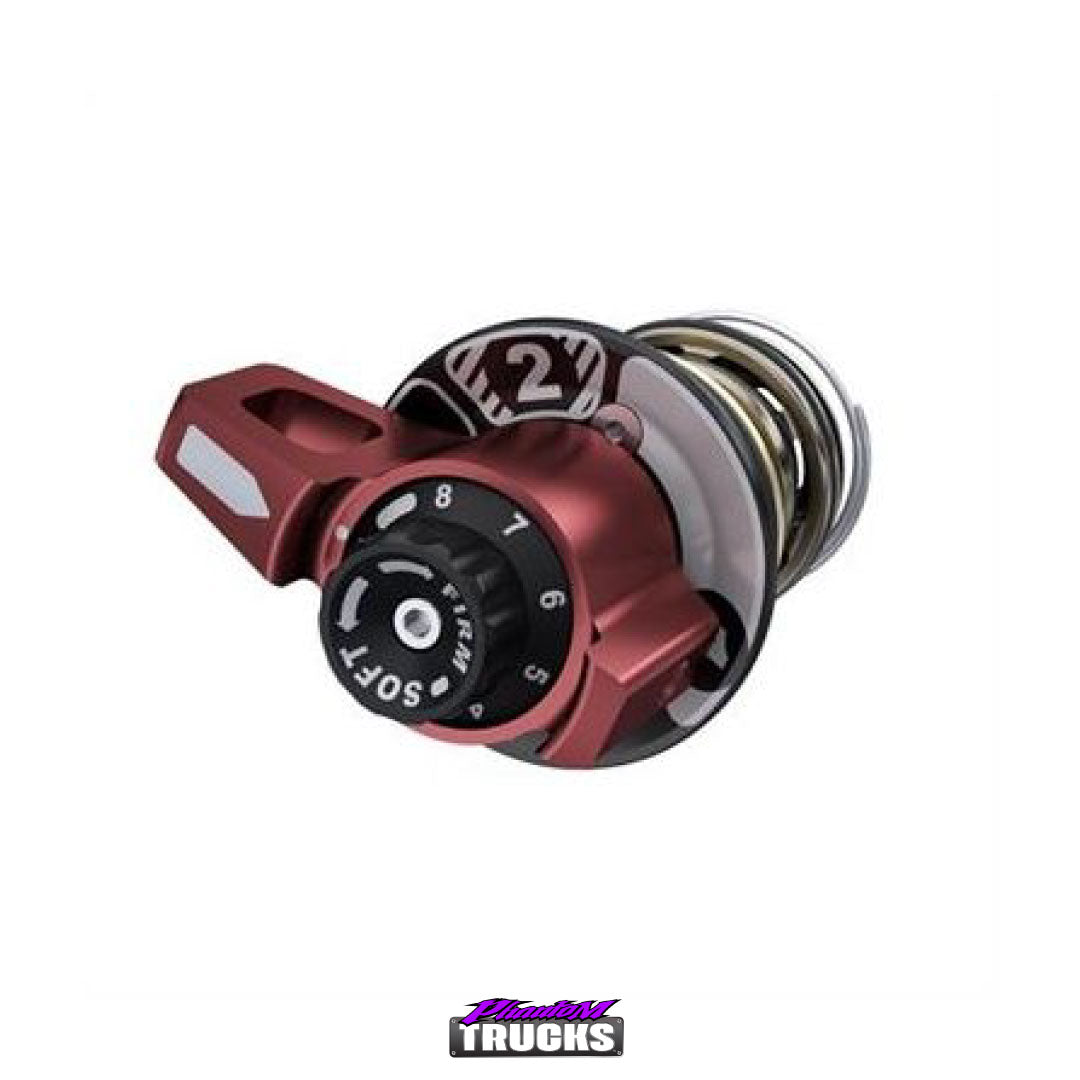

• 3 Position Fast Adjust Knob for Soft, Custom, and Firm Compression. Soft mode allows a partial bypass of the main piston for a softer ride.
• 8 Position Micro Adjust Dial offers refined damping adjustments.
• Reservoir design increases nitrogen to oil ratio for consistent damping over wide temperature ranges.
• DOM tube steel upper control arms with Proprietary Heavy-Duty High-Angle Ball Joint.
• Heavy-duty fabricated steel components utilizing 3/16″ and 1/4″ steel plate.
• Full-coverage differential skid plate constructed from 3/16″ steel plate.
• Includes HD alignment cam bolts for proper front-end alignment.
• Tyre size 295/65R20 with a 20×9” with a 0 offset wheel.
• Max tyre with trimming 37×12.50” with a 20×9” with a 0 offset wheel.

NOTE: Does not fit vehicles equipped with CCD, 2WD, and Raptor. Does not fit F150 equipped with the Diesel engine. (confirm fitment prior to installation).

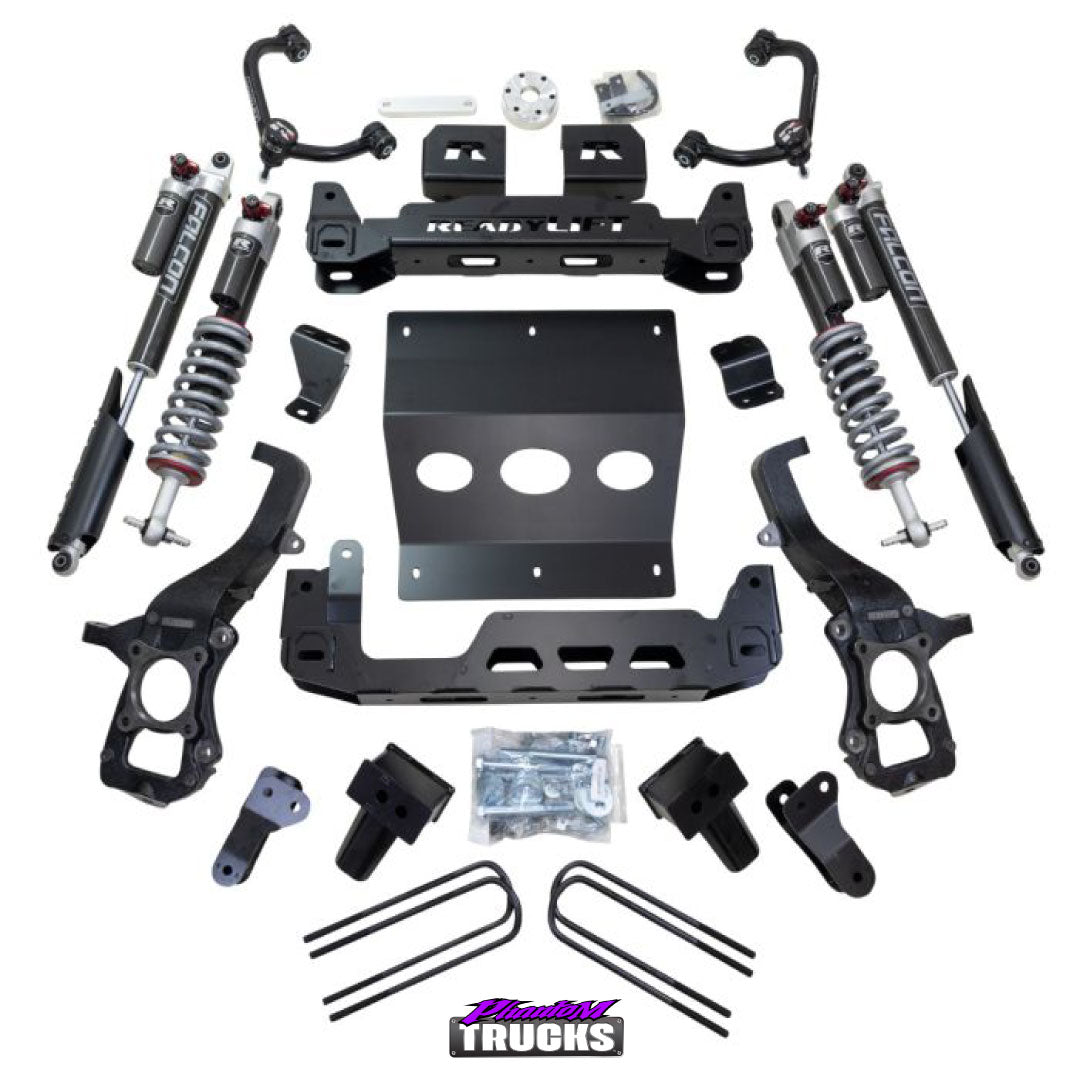

KIT COMPONENTS

• Cross Member Front
• Cross Member Rear
• Cross Member Box
• Differential Drop (L&R)
• Differential Support Bracket (L&R)
• Sway Bar Drop Down Brackets (L&R)
• Machined Front Drive Line Spacer
• F-150 Cast Knuckle (L&F)
• Knuckle Box (L&R)
• 16mm Carrier Bearing Spacer
• Block (L&R)
• U-Bolt Kit
• Alignment Cam Bolt Kit
• F-150 Falcon 3.3 Coilover Front (L&R)
• F-150 Falcon 6" Rear Shock (L&R)
• Diff Breather Vent
• Front Brakeline Support Bracket
• Rear E-Brake Drop Bracket
• F-150 Upper Control Arm Kit
• Hardware Kit.

SKU: 42-21640
