3" SST2.1 Suspension System with Falcon 2.1 Struts/Shocks - Toyota Tundra 2022-2024 (SKU:62-52420)

OVERVIEW

ReadyLift® by Phantom Trucks™ 3” SST Toyota Tundra Lift & CV Axle Kit with Falcon 2.1 Struts & Shocks.

Designed for 2022-2024 Toyota Tundra’s, this premium lift kit delivers an aggressive stance without sacrificing the factory ride quality you rely on.

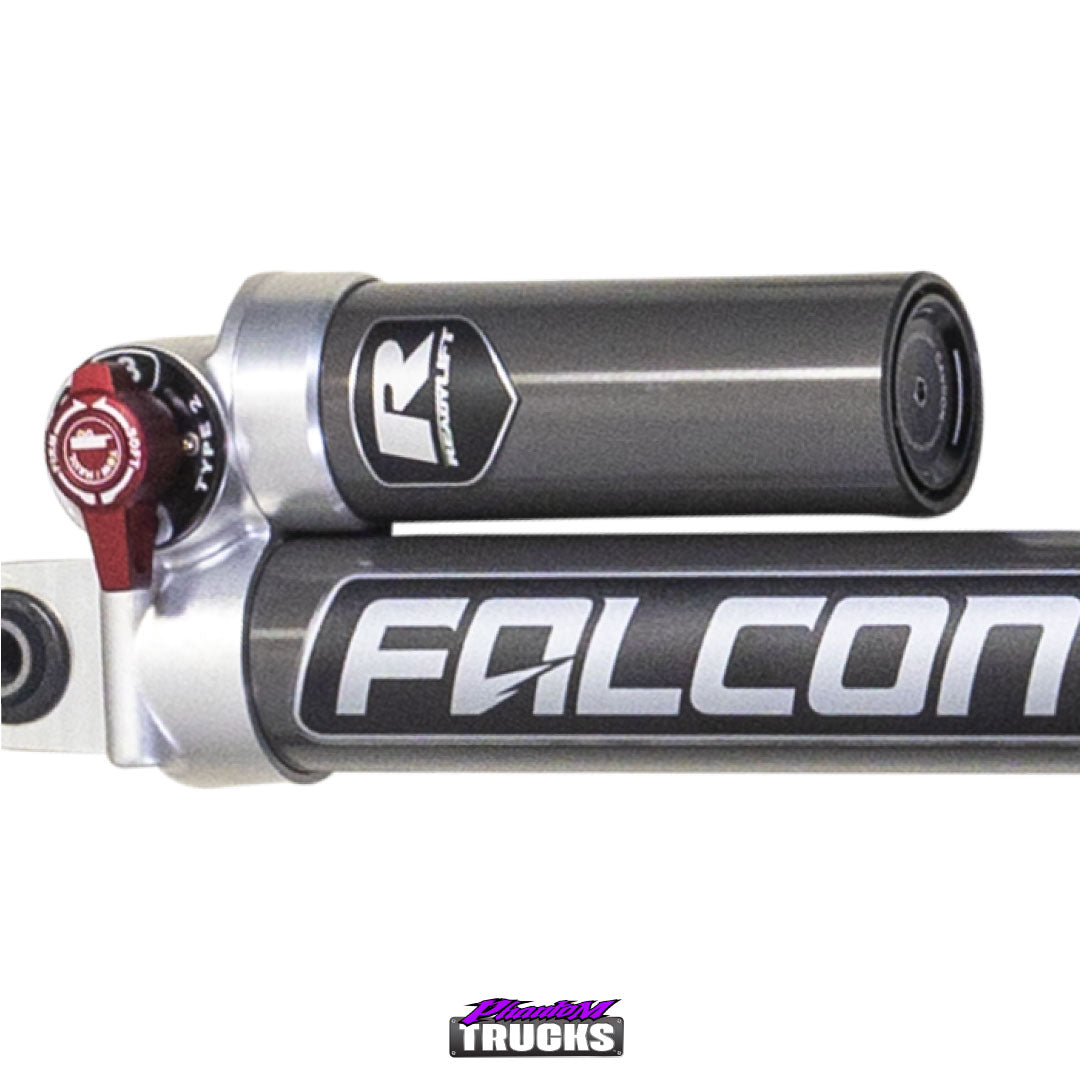

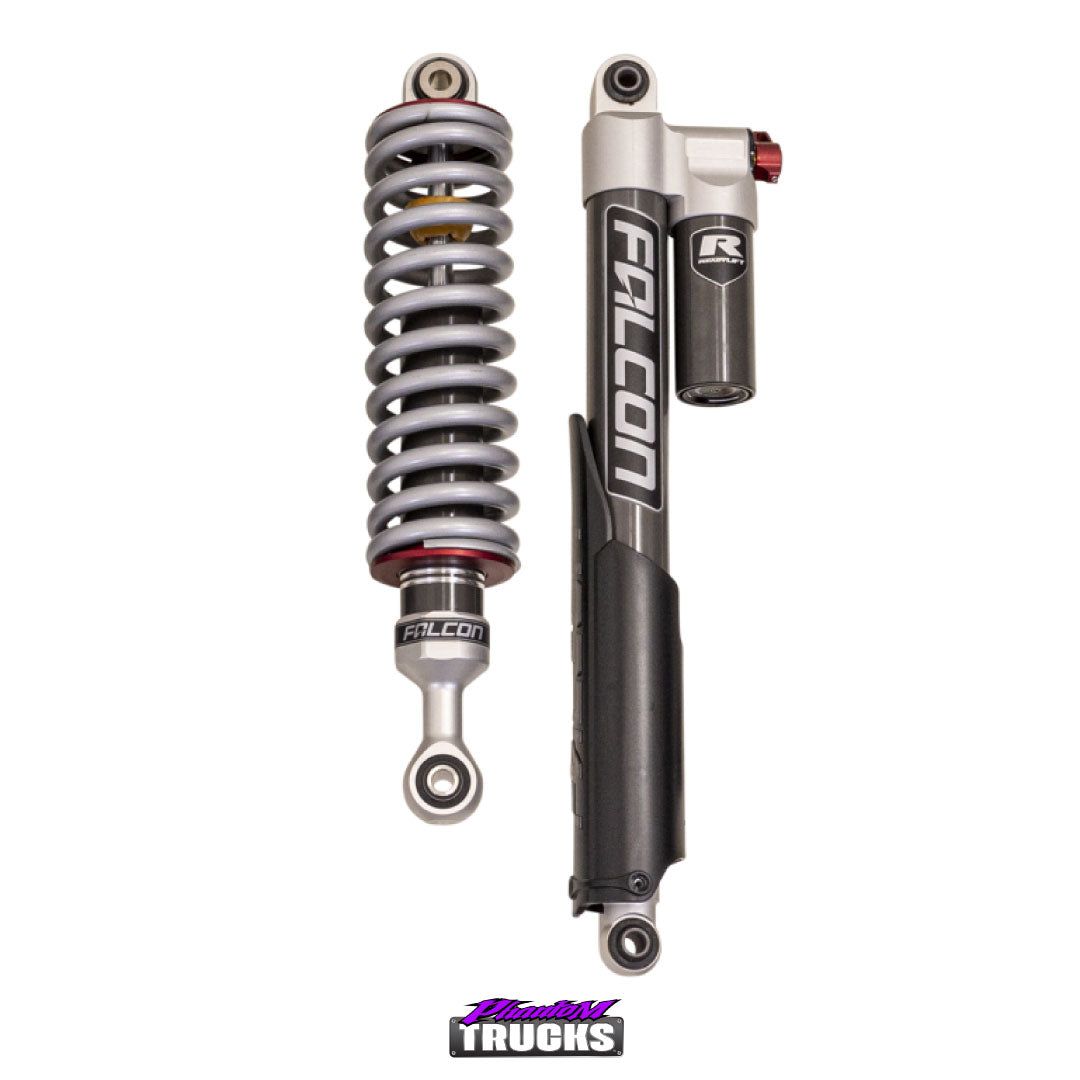

• Falcon 2.1 Series Suspension System – A ride quality upgrade you can feel every kilometre.

• HD Full-Coverage Front Skid Plate – Protects your differential and engine without compromising service access.

• 1.5" Upper Control Arms – Corrected ball joint angles for maximum articulation.

• High-Angle CV Axles – Engineered for maximum suspension travel, reduced vibration, and superior durability.
• Custom Steering Stops – Ensures the integrity of your CV axle under all suspension cycles.
• Fit up to 35x12.50 tires with 18"x9" wheels and +12mm offset.


NOTE: This kit is not compatible with Tundra’s equipped with air ride, TRD Pro, or AVS systems. (confirm fitment prior to installation).

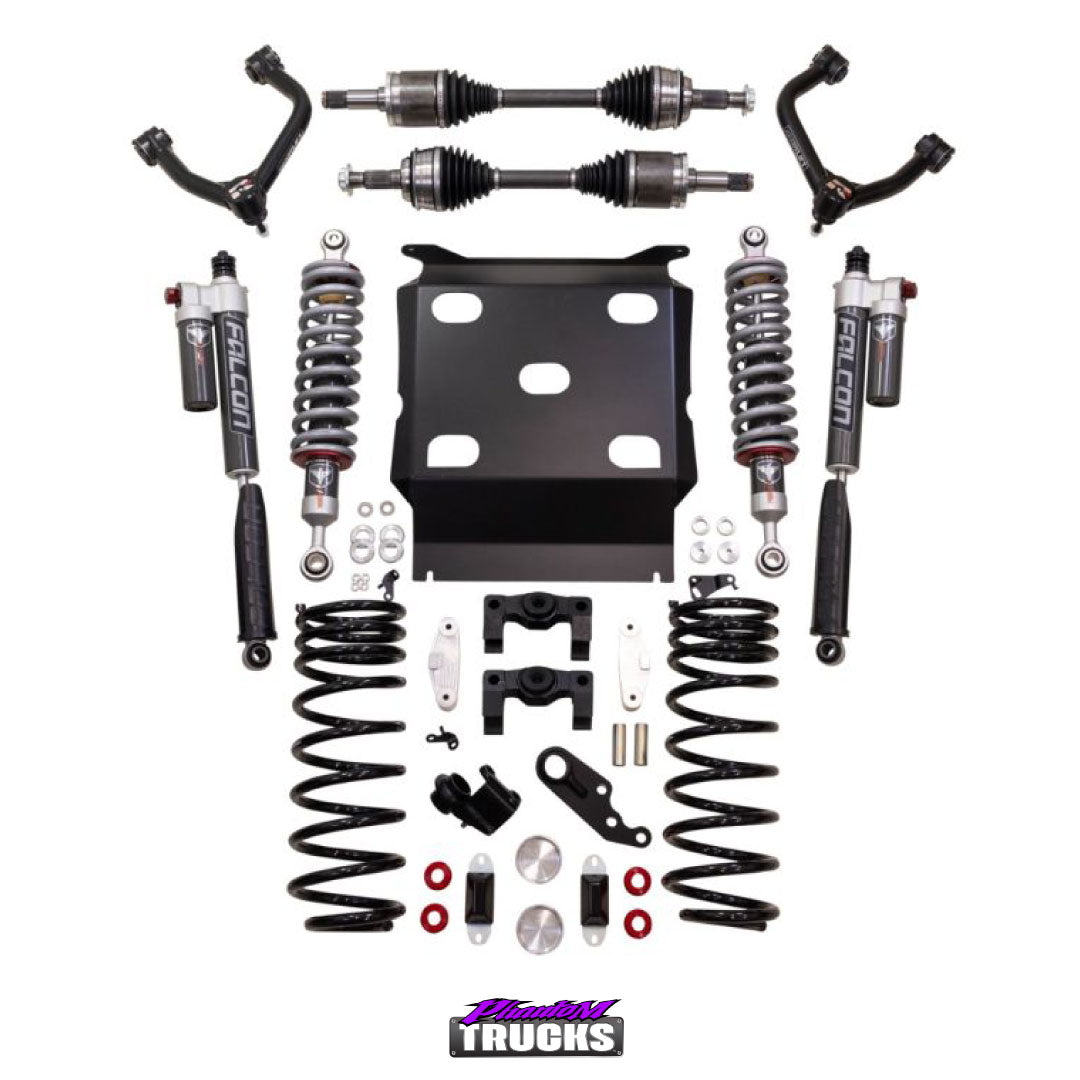

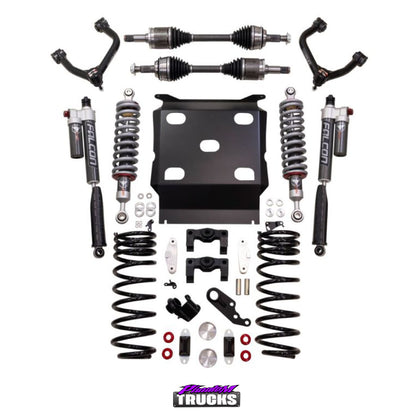

KIT COMPONENTS

• 1.08 odx.54idx.188 l RR shock centering ring qty 2
• 22-up tundra premium rear right qty 1
• 22-up tundra premium rear left qty 1
• 22-up tundra premium front shock qty 2
• 24 Tacoma, diff drop spacer 4 qty 1
• 1.52" od x 0.85" id polyurethane bushing qty 4
• 0.87" od x 0.56" id x 2.65" crush sleeve qty 2
• End link spacer qty 2
• Brake line relocation bracket right hand side (pass) qty 1
• Brake line relocation bracket left hand side (driver) qty 1
• Tundra 0.55" fbse qty 2
• Hardware pack for 62-52420 qty 1
• Rear brake line relocation bracket qty 1
• Rear brake line spacer qty 4
• Tundra rear coil spring qty 2
• Tundra front skid plate qty 1
• 1.75 outer bump stop extension qty 2
• Rear outer bump stop qty 2
• Inner rear bump stop extension 1.5" qty 2
• CV axle kit qty 1
• Knuckle steering stop, right qty 1
• Knuckle steering stop, left qty 1
• Front diff drop, right qty 1
• Front diff drop, left qty 1
• Tundra uca, assem, right qty 1
• Tundra uca, assem, left qty 1
• Hardware Pack



SKU: 62-52420

For further fitment details or queries call 07 3419 9548
