4" SST Lift Kit - GM Silverado / Sierra 1500 2019-2024 (SKU: 69-39400)

OVERVIEW

ReadyLift® by Phantom Trucks™ no-cut 4.0" SST lift kit for 2019-2024 GM Silverado / Sierra 1500 trucks!

This new SST lift kit provides 4" of front lift and includes a 3" rear lift block. Front lift is achieved with heavy-duty laser-cut fabricated steel top mount strut extension with an offset design to correct the strut and wiper seal angles.

A CNC-machined billet Aluminum pre-load spacer is also included. Combined this configuration provides 4 inches of front lift with minor design variations to improve driveline orientation.

This kit provides the right amount of lift without exceeding the CV limits working within the OEM tolerances. (2019-2024 GMC Sierra 2023-2024 Chevy can only fit up to a 295/55-20 tyre due to fender flare wheel well restrictions.)

This all-new, no-cut kit includes new tubular steel upper control arms with optimized ball joint pivot angles and maintenance-free TCT pivot bushings. The new upper control arms are an essential component of our new 4" SST Lift Kit to ensure proper suspension geometry.

For the rear, we include our popular time-tested 3" tall OE-style cast iron rear lift blocks with built-in axle pad locating ears and new longer U-bolts. With the 3" rear blocks, this new GM 1500 truck will have a very subtle rake that looks great with the all-new GM body lines even while towing or hauling payload.

• 4" Lift Front/3" lift Rear.

• 20x9 0 offset 295/65 R20 - 2019-2022 Chevy Max tyre size.

• 20x9 0 offset 295/55-R20 - 2019-2024 GMC & 2023-2023 Chevy Max tyre size.

• No cutting or modifications are required. Increase ground clearance while maintaining the factory ride and handling.
• Include DOM tube steel upper control arms with heavy-duty ball joints and TCT maintenance-free pivot bushings.

NOTES:
Use of Auto 4 Hi feature is not recommended. Not compatible Trail Boss, ZR2, and AT4 / AT4X, and 2019 classic body LD or Limited. Not compatible with Super Cruise.  Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.

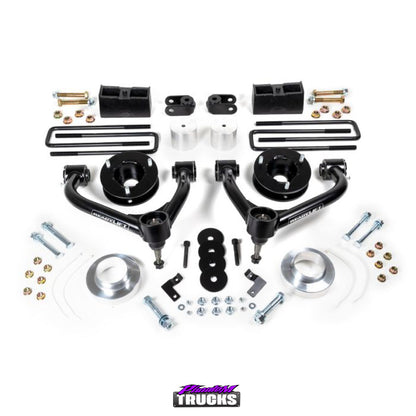

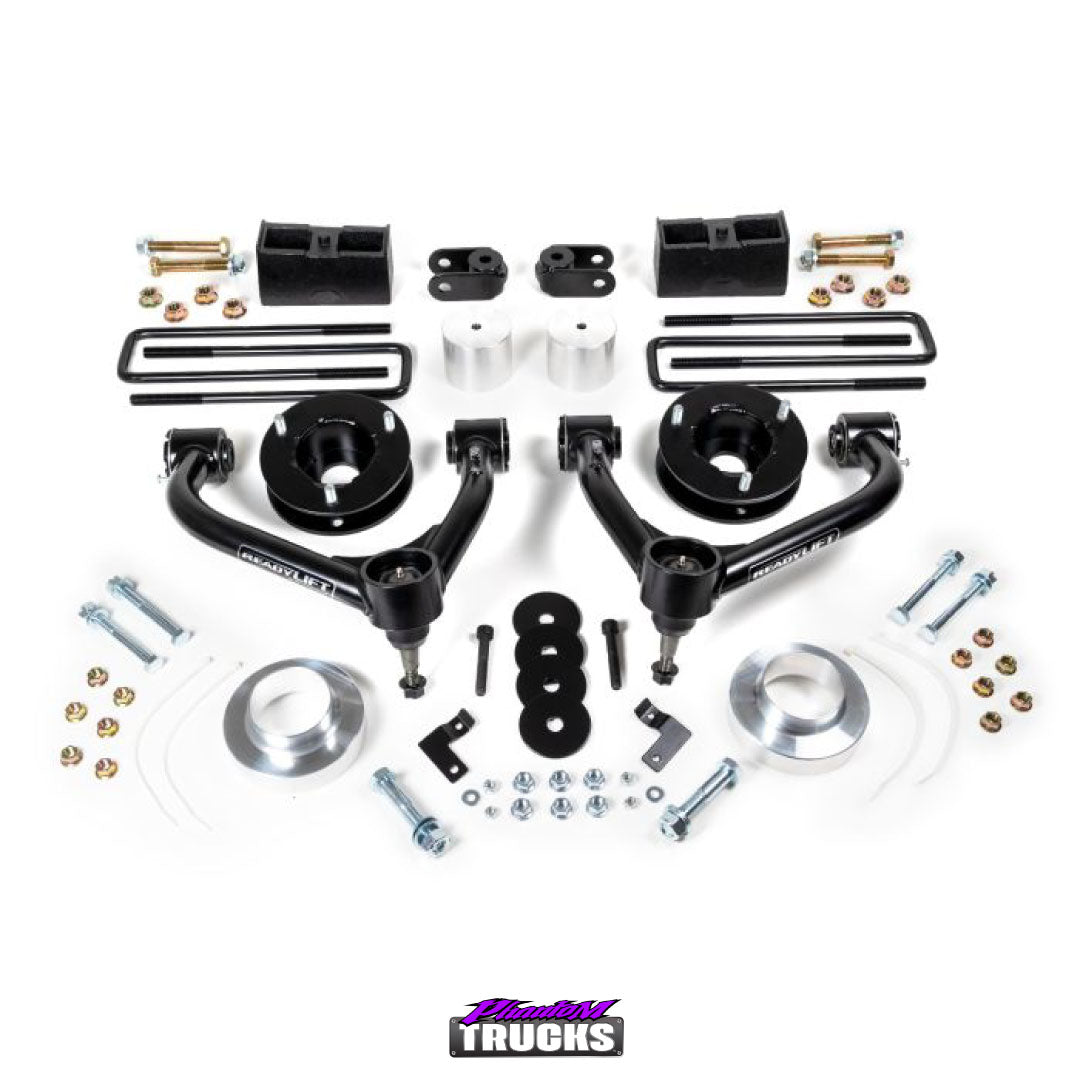

KIT COMPONENTS

• 2 x UCA with maintenance free TCT pivot bushings, heavy-duty ball joints, and with ARC adaptor
• 2 x Fab steel heavy-duty strut extensions
• 2 x CNC machined billet aluminum spring pre-load spacers
• 4 x Laser Cut Washers
• 3" Cast Block w/ U-Bolts
• ARC Relocation Bracket
• Hardware Kit

SKU: 69-39400
