6" MAX3.3 Suspension System - RAM 1500 2019-2025 (SKU: 42-19640)

OVERVIEW.

ReadyLift® by Phantom Trucks™ 6" MAX3.3 Suspension System.

This BIG LIFT KIT delivers unmatched performance, control, and capability for the 2019-2024 Ram 1500. On the current generation Ram 1500, the new MAX3.3 Suspension System provides a 6” lift specifically engineered with the all-new Falcon 3.3 series struts and shocks.

• 3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference.

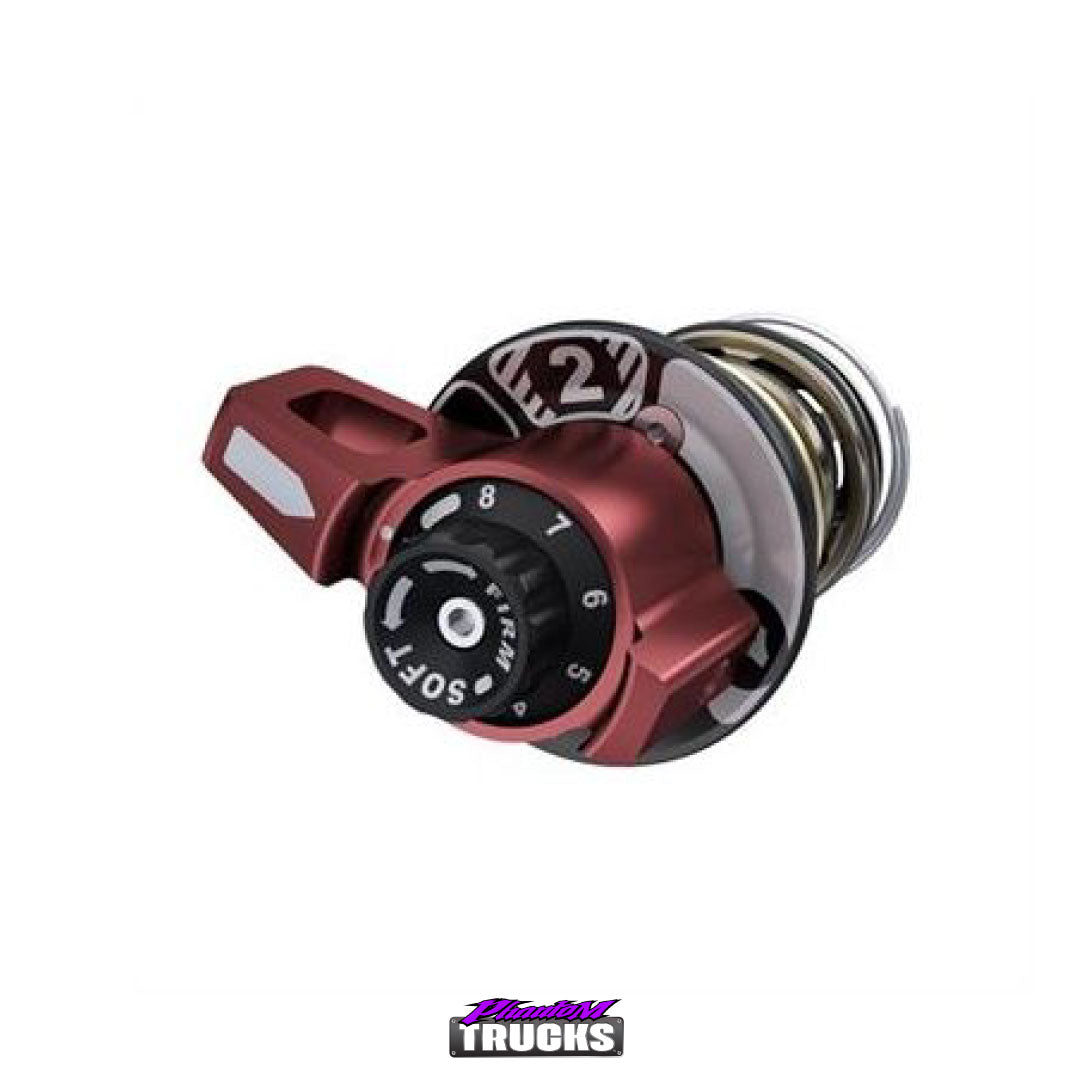

• 3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression. Soft mode allows a partial bypass of the main piston for a softer ride.

• 8-Position Micro Adjust Dial offers refined damping adjustments.
• Reservoir design increases nitrogen to oil ratio for consistent damping over wide temperature ranges.

• DOM tube steel upper control arms.

• Tyre size 37x12.50R20 with a 20×9” with a 0 offset wheel


NOTE: RAM 1500 with factory 22" wheels requires a larger bore knuckle assembly due to larger wheel bearing assembly. Vehicles with 22" factory wheels should use #44-1961 or install replacement standard wheel bearing assemblies (not included). If installing this kit any Off-Road Group Package‚ equipped truck, ReadyLIFT recommends foregoing the front preload spacer installation - the lifted vehicle will sit about 1/2" front high with the preload spacer installed or 3/8" low without the preload spacer. This kit is NOT compatible with (1) adjustable models equipped with air suspension or (2) Ram TRX.

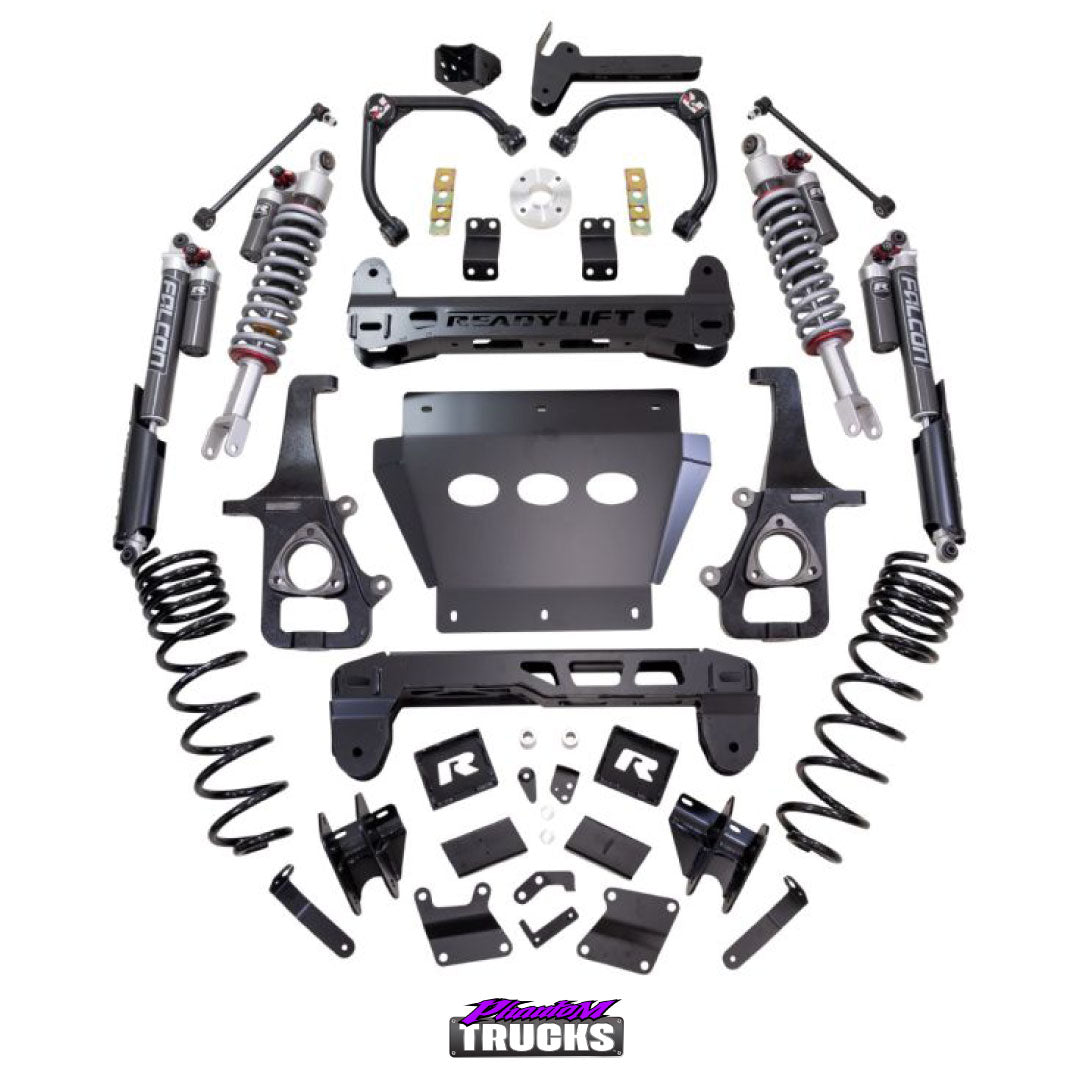

KIT COMPONENTS

• Front Cross Member.
• Driver Knuckle.
• Passenger Knuckle.

• Rear Cross Member.

• Rear Coil Spring.
• Component Kit.
• RL 19+ RAM1500 Falcon3.3 Coilover Front Left.
• RL 19+ RAM1500 Falcon3.3 Coilover Front Right.
• RL 19+ RAM1500 Falcon3.3 Damper Rear Left.
• RL 19+ RAM1500 Falcon3.3 Damper Rear Right.

• RAM1500 UCA Kit.
• Hardware Pack & Instruction Manual.


SKU: 42-19640
